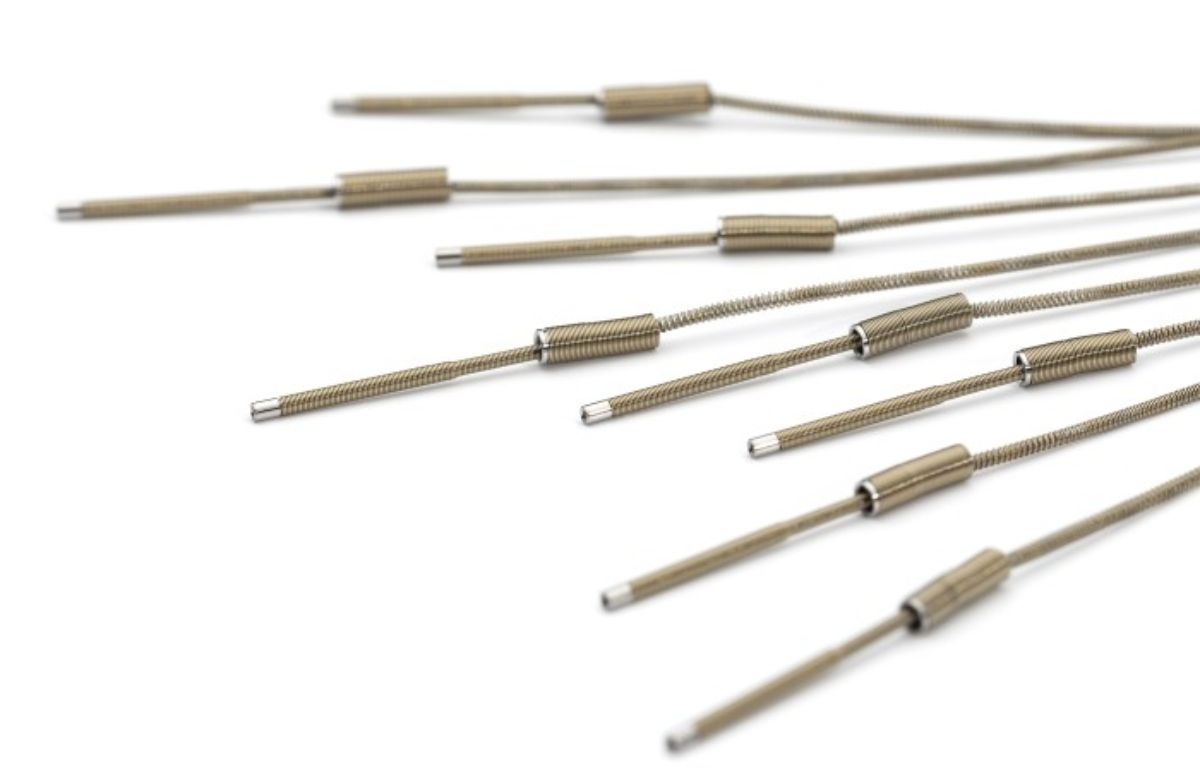

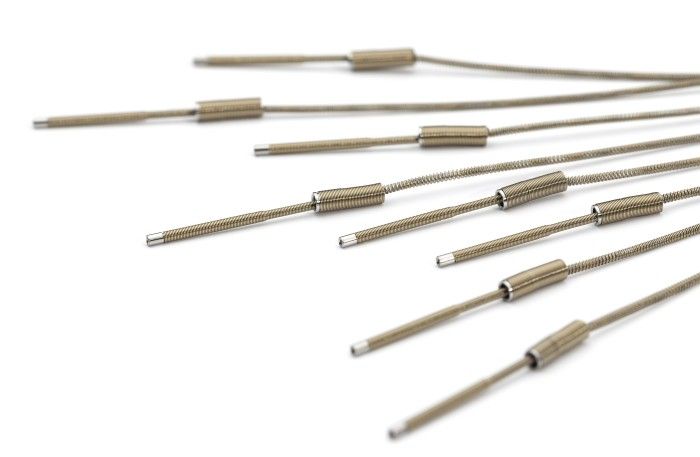

Coils
For critical patient procedures, medical professionals demand the best. The medical coils they select need to meet and exceed those high standards.
The world’s leading medical device companies turn to Heraeus Medevio for innovative solutions to their most complex medical coil challenges. We use patented technology and world-class engineering to produce medical coils for a variety of applications.
Every medical coil we design and manufacture will provide the quality, performance, and reliability you need to earn the trust of surgeons and medical professionals…every time.
From design to manufacturing to delivery, Heraeus Medevio engineers will collaborate with you to ensure your medical coils meet your specific requirements, including:
- Critical features
- Functional requirements
- Raw material/metal selection
- Coil stiffness or flexibility
- Electrical resistance
- Testing and quality assurance processes
Coil Diameter
Specified by OD. Typically ID is specified as reference or min. Diameter can be variable (tapered).
Wire Options
- Round wire

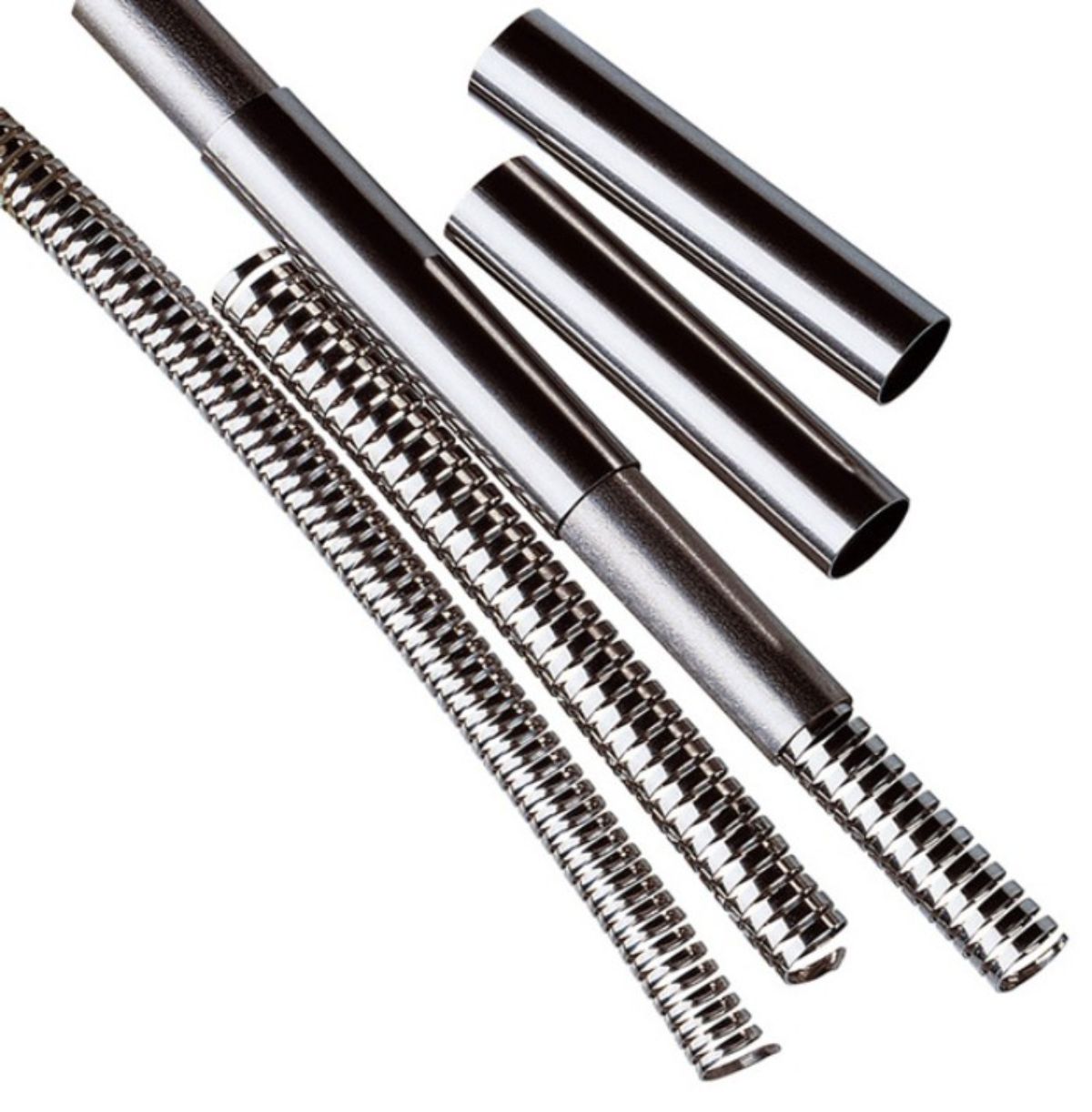

- Flat wire
- Shaped wire

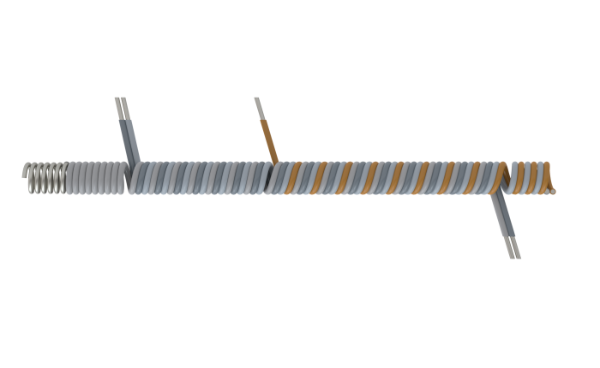

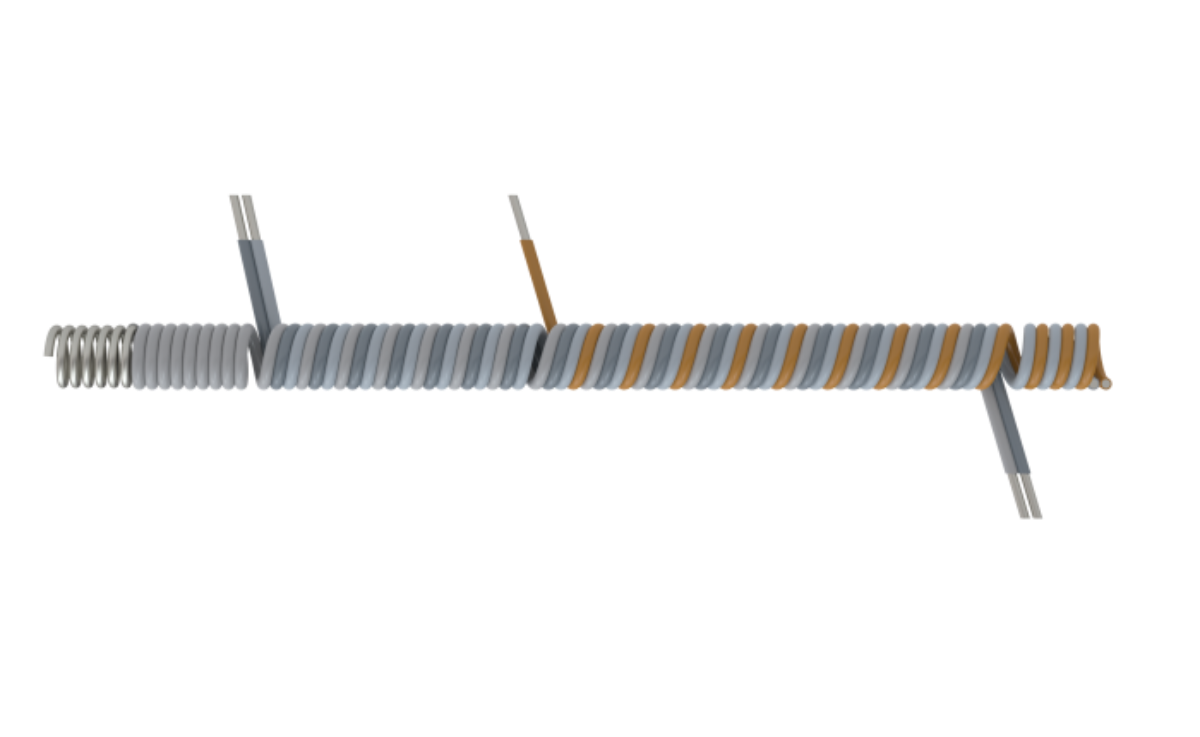

- Single filar or multi-filar coils
Pitch Options
- Tight wound: coil stiffness may be defined; pitch not specified
- Close wound: minimal/no space between filars
- Open wound: gap between the filars; pitch is length of 1 filar wrap, measured using the average over 10 wraps
- Variable pitch: can be varied along the coil to provide varying stiffness
End Cut Options
- Rough Cut
- Radial Cut
- Axial Cut
- Staggered Cut
- Square Cut

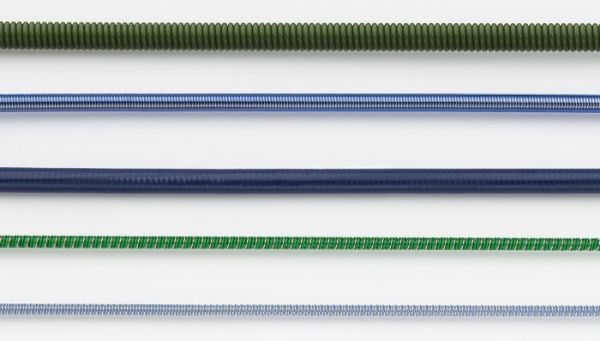

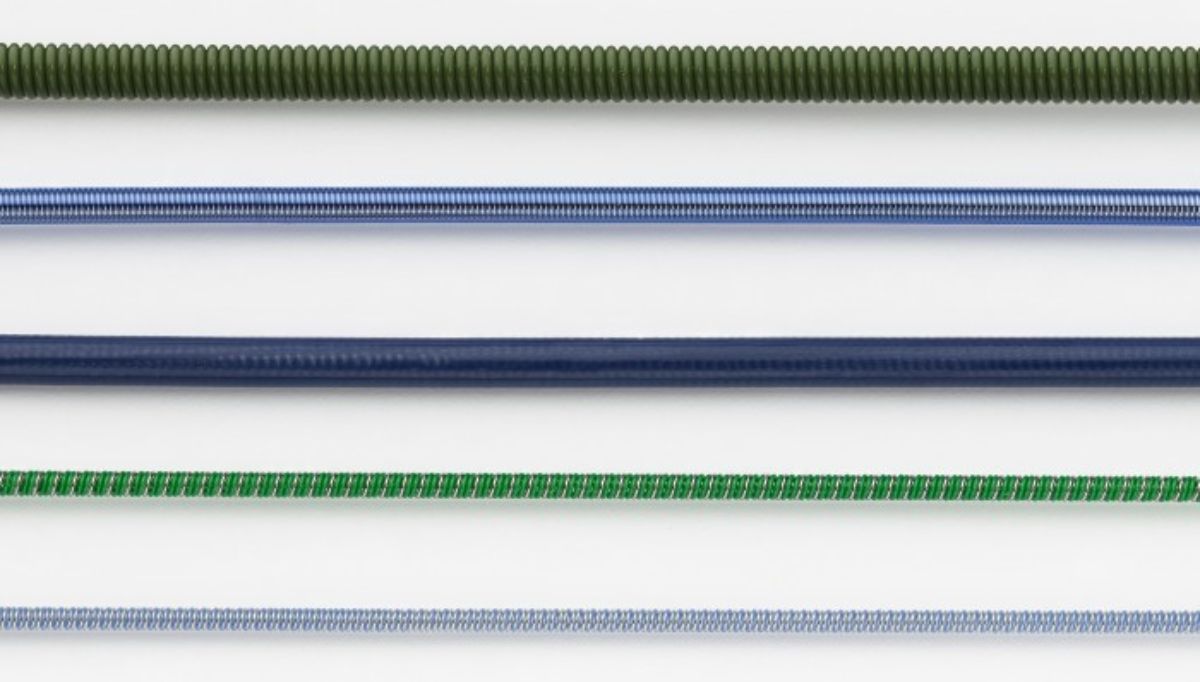

Jacketing Materials
- PEBAX
- FEP
- ETFE
Coil Shaping
- Heat setting and cold forming technology to shape your coils into S-shapes, J-shapes or other 3-dimensional shapes.
Catheter Features / Assembly
- Various Tipping
- Reflow bonding
- Flaring
- Butt Weld / Overlap Weld
